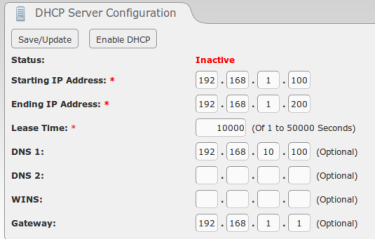

The option "DHCP Server" allows configuring PBX  so it can assign IP addresses in the network.





Here the description of each field:


Name Description
Status It indicates if the DHCP service is enabled or disabled.
Starting IP Address This will be the beginning of the IP range that the server will provide.
Ending IP Address This will be the ending of the IP range that the server will provide.
Lease time Amount of time the IP address will be assigned to devices in the network.
DNS 1 This address is the Primary DNS that the server will provide.
DNS 2 This address is the Secondary DNS that the server will provide.
WINS It is the IP of the WINS Server that will be given to Windows machines.
Gateway This is the address the server will provide as Gateway.


To save changes just click on the button "Save/Update". The service can be started by clicking on "Enable DHCP".
