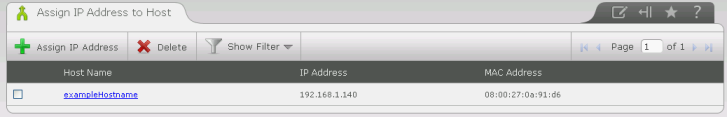

With this option you can assign an IP address to a specific device through MAC address. When the device requests an IP address, the DHCP server will provide it according to the MAC address. All the associations created by the user are shown in a list.

Assign an IP Address

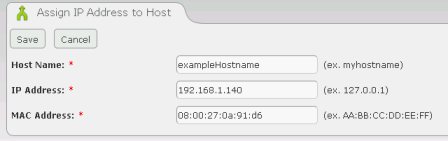

To create a new association, click on "Assign IP Address" button. Fill out the required information and click on "Save" button.

The following table shows the description of each field:

Name Description
Host Name Name that you want to assign to the device
IP Address IP Address you want to use for the device
MAC Address MAC number of the device
