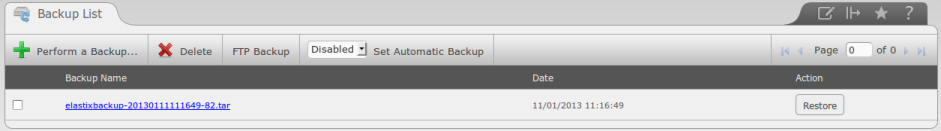

The option "Backup/Restore" of the menu "System" allows you to back up and restore the configuration of PBX . If you have made a backup any time before this will appear in the list . To download a backup from the list, just click on the name of the tar file.

Figure 1

Perform a Backup

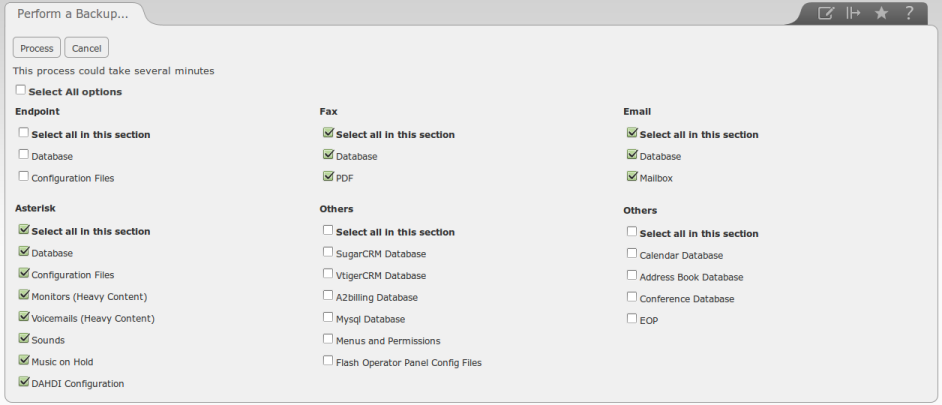

To create a backup just click on "Perform a Backup" button. Select all the configurations you want to back up from PBX and click on "Process" button.

Figure 2

Restore a Backup

In the list of backups (Figure 1) click on "Restore" button locate on the right of the backup you want to restore. Then select the configuration to restore and click on "Process" button (Figure 3).

Figure 3

FTP Backup

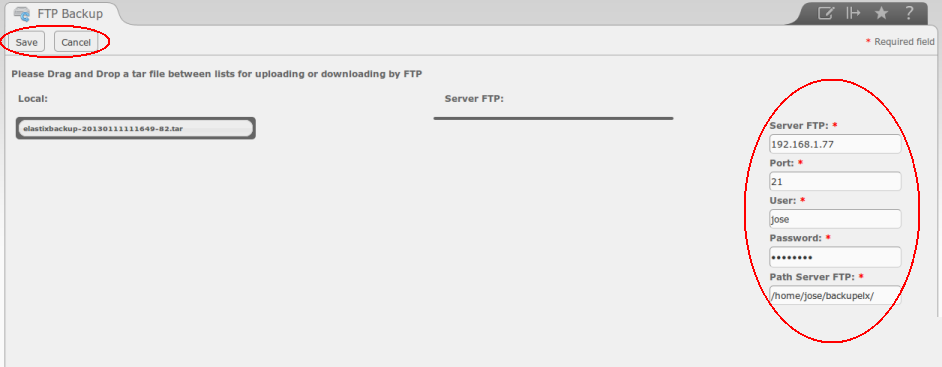

To use a FTP Server to upload and download backups just click on "FTP Backup" button (Figure 1). First, fill out the required information to connect with your FTP Server and then click on "Save" button to save changes.

Figure 4

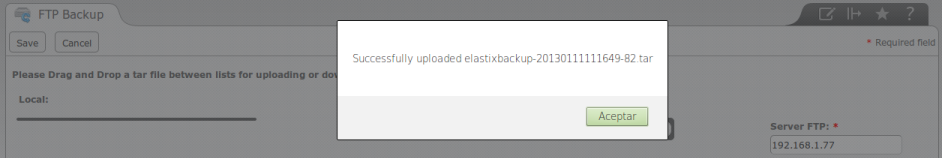

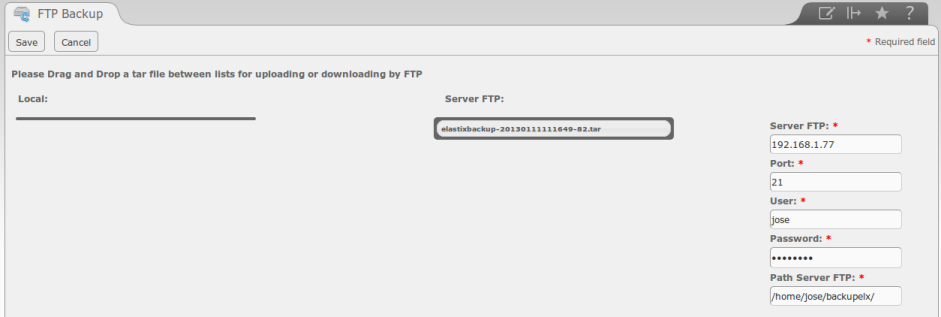

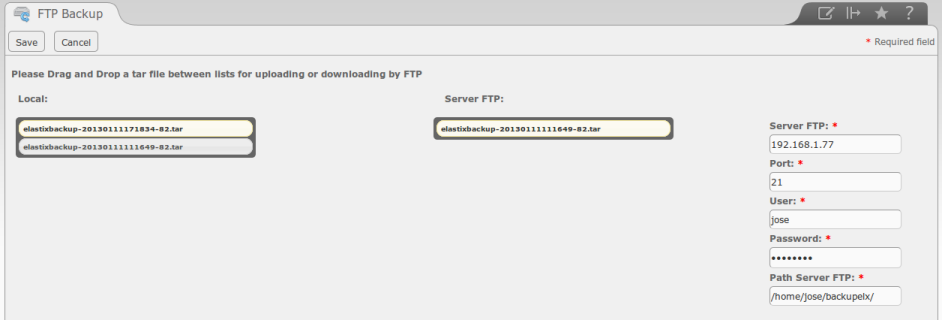

Uploading files to FTP server

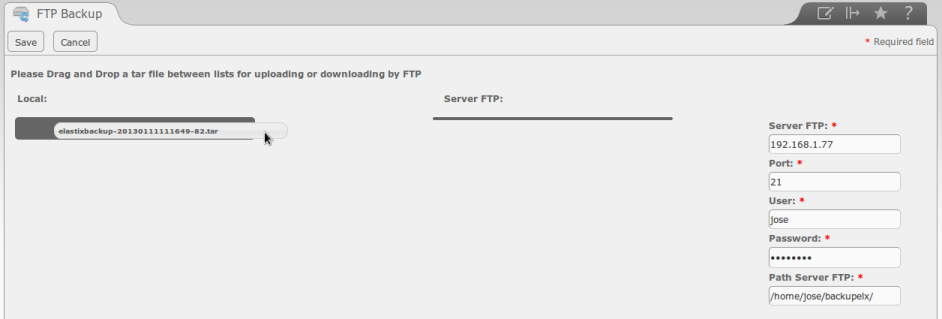

To upload backups to the FTP server you must drag the backup file from Local section to Server FTP section.

Figure 5

Figure 6

Figure 7

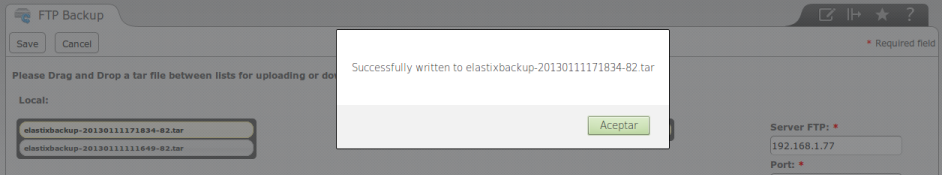

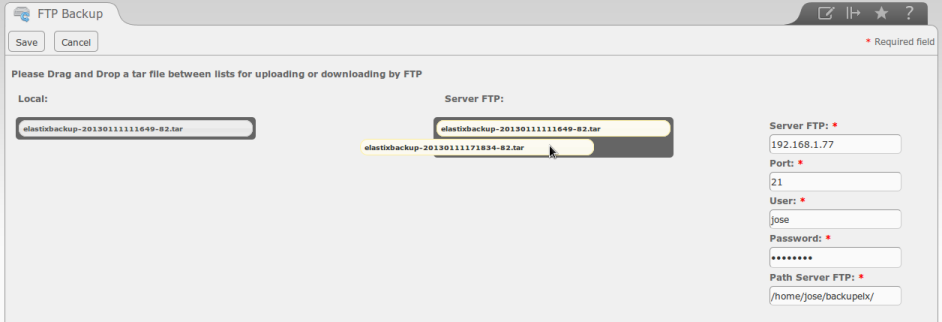

Downloading files from FTP server

To download backup files to PBX Server just drag the file from Server FTP section to Local section.

Figure 8

Figure 9

Figure 10
