Supported IP PBX / Call Center Server


Asterisk,  Elastix,  FreePBX, PBX in a Flash, Vicidial, Asterisknow, Yeastar PBX, Xorcom, Asterisk pbx, Fonality, Trixbox , Other Asterisk Based Telephonic Server



Prerequisite




  • JRE 1.7 or higher version should be installed on Asterisk PBX Server.
  • Require CDR Event should be enable for Asterisk Server.
  • Require port 9999  and 5038 should be enable for Asterisk Server.
  • Supports Asterisk, Elastix, FreePBX, vicidial, PBX in a Flash, asterisknow, xorcom, asterisk pbx, fonality, trixbox or Asterisk Based Telephonic Server.
  • Supports all version of Agile .
  • Support Soft phone or Sip based hard Phone.
  • There should be connectivity between CRM and Asterisk server.
  • Please make back up of data of crm and asterisk before Installation.






Installation Steps


Create Account On Our Portal https://license.techextension.com/register.php


create-account

Log In after Creating account https://license.techextension.com/login.php


login_license

Add License



add_license



Generate License



genrate_license




1. Server Configuration



Download techextension.zip File For Bitrix24 CRM

Download



Upload techextension.zip on public web folder on server and extract it ( Example : /var/www/html/techextension or htdocs/techextension ) So web URL Like http://192.168.1.100/techextension ) than follow the steps

After Successfully Upload techextension folder on server, you need to Admin User setting Module. Following steps describe Admin User Configuration process.



Step 1: Go to http://IP/techextension/AsteriskSupport/

Step 2 :Fill sign up form with login name and desire password

Step 3 Login in ( http://IP/techextension/AsteriskSupport/)

Step 4 Do Configuration

Step 5 Enter Your Asterisk Server Details By Step By Steps


asterisk-admin-configuration

Asterisk IP ( 192.168.1.100)

UserName : Asterisk server Admin Manager User Name

Password : Asterisk server Admin Manager Password

Internal Channel: SIP

External Channel: DAHDI



You will find Asterisk server Admin Manager User Name and password from /etc/asterisk/manager.conf

sugarcrm-Activation-admin-user-setting



Make sure that your CRM server IP have access to your asterisk pbx server AMI. Check permit and deny setting in manager.conf

After changes in file Restart Asterisk PBX. ( command : /etc/init.d/asterisk restart )



Steps 6 Please Save the Configuration and create Following Panel

sugarcrm-Activation-admin-user-setting-save



Now Access server using Putty or other ssh client and Go to techextension Folder .

(cd /techextension/AsteriskSupport/ )

Edit This File AsteriskProperties.xml

< url>http://techextensionurl|< /url>

Here http://techextensionurl is same as your add-on URL If you have URL like http://192.168.1.100/techextension than URL should be http://192.168.1.100




Note : Do not remove | from ends its is used for our purpose.

sugarcrm-property-admin-user-setting-save

Now Check Once again all setting .



sugarcrm-property-admin-user-setting-save




Now Open configuration.php .

Enter same IP of Asterisk ( $asteriskip) entered in AsteriskProperties.xml

Enter same IP of Server ($serverip) which is techextension folder server IP




configurationasterisk




Now Configured CRM Setting

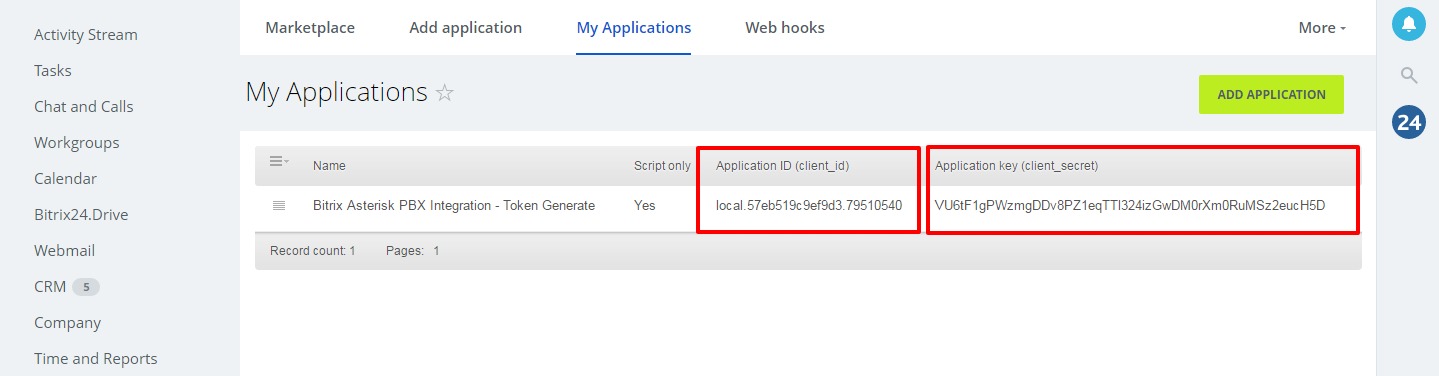

Go to User Profile -> Edit Profile Setting






Application -> My Application-> Add Application





It will generates Application Key and Application ID

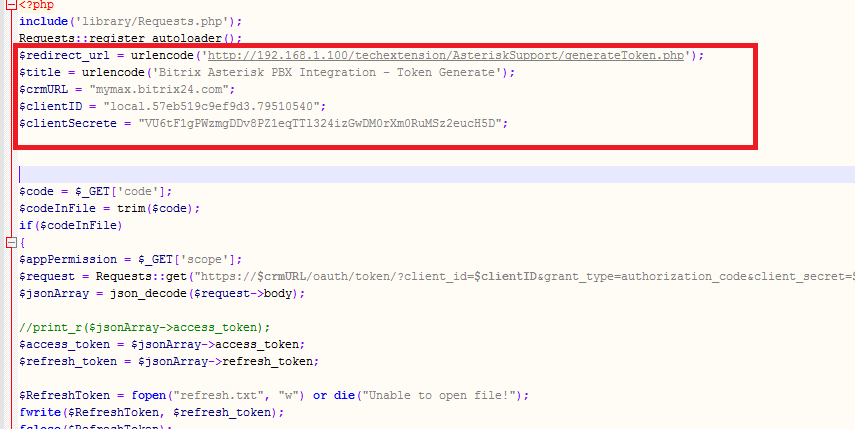

Now Open generateToken.php


Enter $redirect_url = urlencode('http://192.168.1.100/techextension/AsteriskSupport/generateToken.php');


Here web path of  generateToken.php


$crmURL = "mymax.bitrix24.com";


$crmURL is bitrix Domain of your crm


$clientID = "local.57eb519c9ef9d3.79510540";


$clientID is Application ID which is shown above picture.



$clientSecrete = "VU6tF1gPWzmgDDv8PZ1eqTTl324izGwDM0rXm0RuMSz2eucH5D";


$clientSecrete is Application key which is shown above picture.











Now Run This Command in putty .

java -jar AsteriskSupport.jar




Asterisk


If you get Following message. Check AMI ( Asterisk Manger interface ) User name and Password set on previous above steps




Asterisk



If you get Following message. It is Successfully Integrated



Asterisk


Download Voip File

Download

Extract voip.zip file

Now Run This Command in putty .

pwd

It will Give you path



Asterisk



Put It in to voip file



Asterisk



Upload voip file in to /etc/init.d/


Give voip file permission to 755

Run This Command if you have CentOS ( chkconfig voip on &amp;&amp; chkconfig --list )

Run This Command if you have Debain OS ( update-rc.d voip defaults )



Techextension add-on command

check status: ( service voip status )

Restart : ( service voip restart )

stop: ( service voip stop )

Start : ( service voip start )




2. End User CRM Configuration

End User Chrome Extension Configuration

Go to chrome web store


Download Extension


Configure Chrome Extension

chrome-webstoe


Click on Phone Icon It will open following Set up window .



configuration-sugarcrm-extension


Fill Information and Click on Set-up. It will open following window.



chrome-sugarcrm-configuration


User need to fill following details and save configuration. .

chrome-sugarcrm-configuration-details
